Overview

Heard the Bambi name before? For years, it's been a nickname for our smallest single-axle travel trailers. But now Bambi is its own official family of lightweight, space-maximizing options ready to deliver a huge step up from the tent camping experience. Bambi takes care of all the little things you need, so you can get out there and have some big adventures.

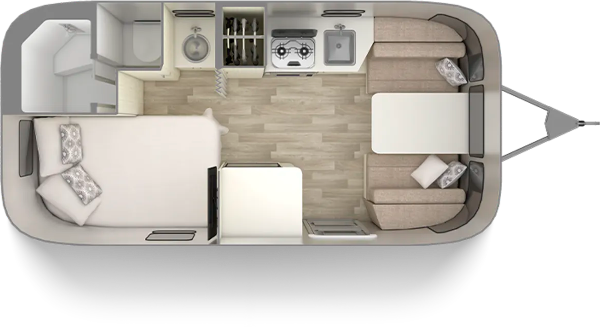

Floor Plans

16 feet Length
1 Axle
4 Sleeps

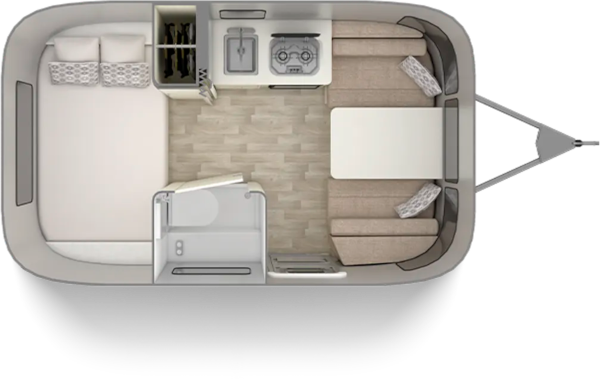

Bambi 16RB
19 feet Length
1 Axle
4 Sleeps
Bambi 19CB
20 feet Length
1 Axle
4 Sleeps
Bambi 20FB
22 feet Length
1 Axle
4 Sleeps

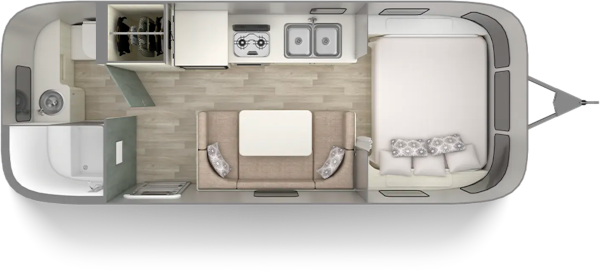

Bambi 22FB

Specifications

16RB 19CB 20FB 22FB
Exterior Length 15' 11 18' 11 20' 5 21' 8
Exterior Width 8' 8' 8' 8'
Interior Width 7' 7 7' 7 7' 7 7' 7
Exterior Height with A/C 9' 3 9' 3 9' 3 9' 3
Interior Height with A/C 6' 4 6' 4 6' 4 6' 4
Maximum Trailer Capacity (GVWR) (lbs.) 3,500 5,000 5,000 5,000
Net Carrying Capacity (lbs.) 500 1,350 1,000 1,100
Fresh Water Tank (gal.) 23 27 27 27
Gray Water Tank (gal.) - 28 28 28
Black Water Tank (gal.) 28 (Combo) 18 18 18
Convection Microwave Oven - - - -
Interior Windows and Skylights 7 11 11 9
Sleeping Capacity Up to 4 Up to 4 Up to 4 Up to 4
Ducted Furnace (BTU) 12,000 16,000 18,000 18,000
Convertible Dinette, Lounge and Bed 40 40 40 38
Microwave STD STD STD STD
30 AMP Service Single A/C with Heat Strip (BTU) 13,500 13,500 13,500 13,500
Hitch Weight (with LP & Batteries) 430 525 540 500
Unit Base Weight (with LP & Batteries) 3,000 3,650 4,000 3,900
Refrigerator (2-way Electric DC/AC) 3.1 cu. ft. 4.3 cu. ft. 4.3 cu. ft. 4.3 cu. ft.
Master Bed Configurations 48 48 48 54
16RB 19CB 20FB 22FB
2 Deep Cycle Group 24 Battery with Multi-Stage Converter STD STD STD STD
3M® Film Front Stone Guard Protection STD STD STD STD
4 Manual Stabilizer Jacks STD STD STD STD
90w Solar Package with Interior Monitor and AGM Battery OPT OPT OPT OPT
Aluminum Entry Door Handle STD STD STD STD
Aluminum LP Cover STD STD STD STD
Black Tank Flush System STD STD STD STD
Cable TV Hookup STD STD STD STD
Cast Aluminum Door Hinges STD STD STD STD
Cast Aluminum LED Tail Lights STD STD STD STD
City Water Inlet with Water Pressure Regulator STD STD STD STD
Custom Aluminum Handcrafted 26 in. Wide Entry Door with Window STD STD STD STD
Dedicated Waste Hose Storage STD STD STD STD
Enclosed Aluminum Insulated Heated Underbelly STD STD STD STD
Exterior LP Gas Low Pressure Grill Connection STD STD STD STD
Exterior Shower with Hot & Cold Water STD STD STD STD
Fluorocarbon Treated UV Protected Aluminum Exterior STD STD STD STD
Goodyear® Endurance ST225/75R15 Tires, Balanced STD STD STD STD
Hand Painted Chassis STD STD STD STD
Handcrafted Welded Extruded Aluminum Window Frames STD STD STD STD
LED Entrance Light STD STD STD STD
LED Storage Compartment Light STD STD STD STD
LED Tank Service Light STD STD STD STD
License Plate Bracket with LED Light STD STD STD STD
Lockable Fresh Water Tank Inlet STD STD STD STD
LP (2 - 20 lb. Steel Tanks) with Auto 2-stage Regulator STD STD STD STD
Manual Hitch Jack STD STD STD STD
Manual ZipDee® Patio Awning with Weather Max Fabric STD STD STD STD
Nev-R-Adjust® Brakes STD STD STD STD
Rear View Monitoring System STD STD STD STD
Semi-Monocoque Aluminum Superstructure STD STD STD STD
Solar Front Window Protection STD STD STD STD
Solar Pre-wire (3 Rooftop & 1 Front Access Points) STD STD STD STD
Spare Tire - Full Size STD STD STD STD
Steel Entry Step STD STD STD STD
Stylized Aluminum Wheels STD STD STD STD
Temperature Reducing One Piece White Aluminum Roof STD STD STD STD
Tempered Tinted Windows with Double Cam Latching System STD STD STD STD
Thermal Barrier Protection Between Interior & Exterior STD STD STD STD
Torsion Axle Suspension STD STD STD STD
Unique Front Door Key with Heavy Duty Deadbolt STD STD STD STD
16RB 19CB 20FB 22FB
A/C with Heat Strip STD STD STD STD
Coat & Key Hooks STD STD STD STD
Complete Aluminum Interior Walls and Ceiling STD STD STD STD
Direct Spark Ignition LP Water Heater (6 gal.) STD STD STD STD
EcoBatt Insulation STD STD STD STD
Fan with Multiple Speeds STD STD STD STD
Handcrafted and Welded Aluminum Screen Door STD STD STD STD
Handcrafted Italian Lite-Ply Laminated Cabinetry STD STD STD STD
LED Interior Lighting STD STD STD STD
Overhead Storage with Tambour Doors STD STD STD STD
Panoramic Front Windows with Blackout Shades STD STD STD STD
Probeless Tank Monitoring System STD STD STD STD
Seamless Vinyl Flooring STD STD STD STD
16RB 19CB 20FB 22FB
12v/110v LED HD TV with DVD and Omni Directional Antenna STD STD STD STD
2 Burner Cooktop (LP Gas) STD STD STD STD
Aluminum Mini Blinds STD STD STD STD
Dinette Converts to a Lounge and Sleeping Accommodations STD STD STD STD
Flatware Organizer STD STD STD STD
JVC Stereo with Bluetooth® Connectivity STD STD STD STD
Laminate Dinette Top STD STD STD STD
Laminate Galley Top STD STD STD STD
Moen® Faucet STD STD STD STD
Performatex® Stain Resistant Dinette Cushions STD STD STD STD
Stainless Steel Sink STD STD STD STD
16RB 19CB 20FB 22FB
Blackout Curtain(s) STD STD STD STD
Decorative Throw Pillows STD STD STD STD
LED HD TV (Shared with Lounge) STD STD STD STD
Pillow Top Memory Foam Mattress STD STD STD STD
Quilted Bedspread STD STD STD STD
Reading LED Lights STD STD STD STD
Sleeping Pillows STD STD STD STD
Under Bed Storage STD STD STD STD
Wardrobe with Hanging Bar STD STD STD STD
16RB 19CB 20FB 22FB
Bathroom Faucet - STD - -
Bathroom Faucet** - - STD STD
Lavy Sink - STD - -
Lavy Sink** - - STD STD
Removable Hand Held Shower Head with Shut Off STD STD STD STD
Retractable Clothes Line in Shower STD STD STD STD
Roof Vent/Fan STD STD STD STD
Toilet STD STD STD STD
Towel Bar/Ring STD STD STD STD
16RB 19CB 20FB 22FB
3 Year 24/7 Coach-Net® Roadside Assistance STD STD STD STD
3 Year Airstream Limited Warranty (Transferable) STD STD STD STD
Airstream Logo Entrance Mat STD STD STD STD
Built In Winterization Kit STD STD STD STD
Fire Extinguisher STD STD STD STD
Internally Routed A/C Condensation Drain Line to Wheel Well STD STD STD STD
LP, Smoke & Carbon Monoxide Detectors STD STD STD STD
TRA Certified Green: Emerald Status (Highest Rating) STD STD STD STD

Features

A bed for two, plus a dinette for two more- If you're ready to get away for a weekend adventure with your partner, the Bambi Travel Trailer is perfect. But it's also a great way to bring some family, friends, and pets along for the trip, too. Two people can comfortably sleep in the dedicated bed, and you can easily and quickly convert the dinette into extra sleeping space for two, then convert it back when you're ready for breakfast the next day.

Air conditioning and heating- Temperature can easily make or break any camping trip. But with Bambi's air conditioner and auxiliary heat strip, you'll stay comfortable no matter where you are and what the weather is like outside. The heat strip gives you the flexibility to use electricity to keep your Bambi warm and toasty.

Take camp meals to the next level- When you're ready for something a little more gourmet than the campfire, Bambi has a stove and microwave that give you much more freedom and flexibility. The built-in refrigerator keeps things fresh, and a sink and stove cover extend your prep space on the countertop.

Exterior shower- Inside a lockable compartment on the outside of the Bambi is an exterior shower with hot and cold water. Use it to rinse off your gear or yourself before you step inside your trailer, or enjoy an outdoor shower just because you want to.

Spacious rear bath- The 22FB floor plan features a spacious bathroom that spans the whole back of the trailer, with a wood door and a window. A standalone shower includes a built-in seat, and a vanity with cabinet storage gives you plenty of space to get ready.

Outdoor storage locker- Throw cords, tools, and extra gear in the exterior storage lockers and save valuable interior space.

Memory Foam Mattress- The pillow-top memory foam mattress is made to fit perfectly in the bedroom and help you float into a good night's rest.

JVC Stereo with Bluetooth®- Stream music from your devices on the stereo, which also plays CDs and AM/FM radio. It also includes an LED HDTV and built-in DVD player that run on 12V/110V battery power.

Retractable Awning- Pull out the awning to make a shady space to relax right outside the front door, and keep your trailer cooler in the sun.

USB and 110V Charging- Strategically placed USB ports and 110V outlets help you keep everything charged up and ready for the next adventure.

Performatex Seating Fabric- Bambi's fabric is made of recycled fiber that's easy to clean and resistant to fading, fire, and repeated use.

All-electric Refrigerator- The refrigerator runs off of battery power, which helps it get cold quickly and efficiently stay cool throughout your trip.
